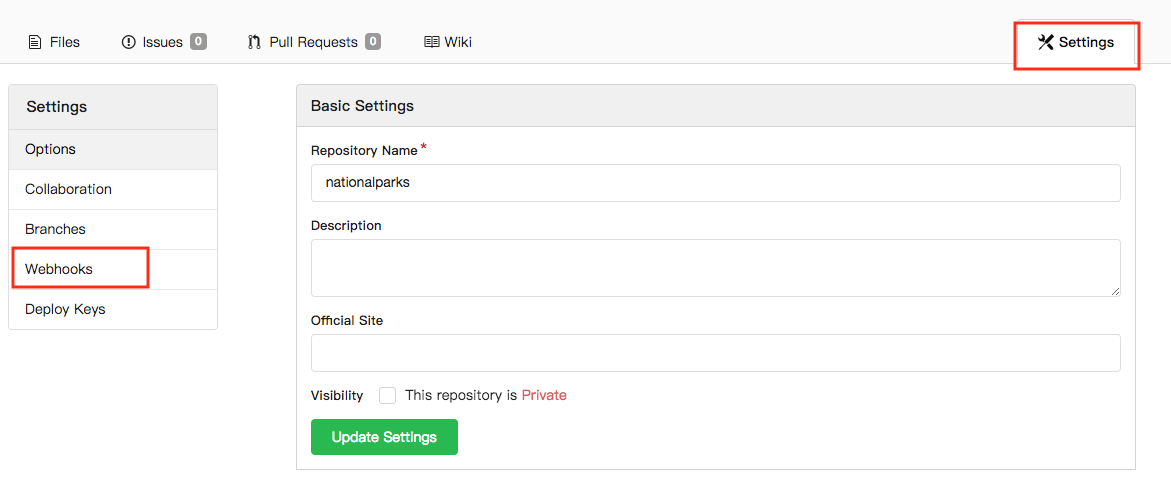

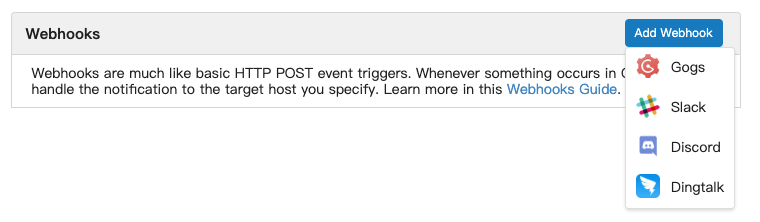

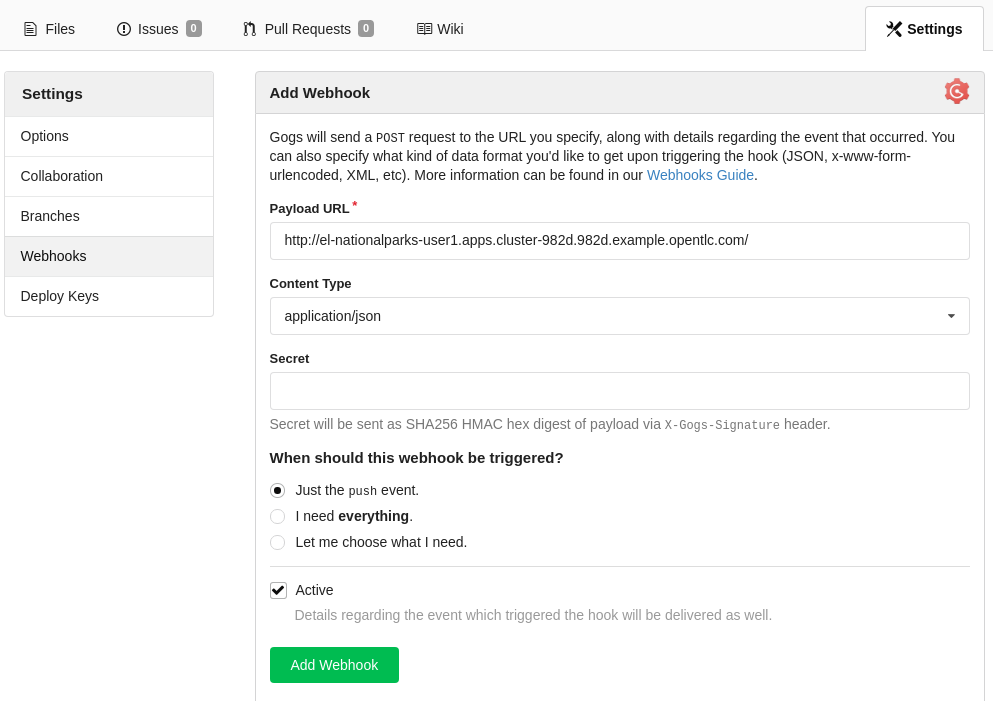

Background: Web Hooks Most Git repository servers support the concept of web hooks — calling to an external source via HTTP(S) when a change in the code repository happens. OpenShift provides an API endpoint that supports receiving hooks from remote systems in order to trigger builds. By pointing the code repository’s hook at the OpenShift API, automated code/build/deploy pipelines can be achieved. Exercise: Configuring Gogs Web Hooks In this section you can use a build webhook to trigger a pipeline execution every time there is a change in the nationalparks Gogs repository. In the the Developer perspective in the web console, click Builds in the left navigation. Click the nationalparks build config and scroll down to the Webhooks section. On this screen you will see webhook information as shown in the following image: Click Copy URL with Secret. Once you have the URL copied to your clipboard, navigate to the code repository that you have on Gogs: Gogs Repository Your Gogs credentials are: username: %USERNAME% password: %GOGS_PASSWORD% Click the Settings link on the top right of the screen: Click on Webhooks, then the Add Webhook button, and finally select Gogs. In the next screen, paste your link into the "Payload URL" field. You can leave the secret token field blank — the secret is already in the URL and does not need to be in the payload. Change the Content Type to application/x-www-form-urlencoded. Finally, click on Add Webhook. Boom! From now on, every time you commit new source code to your Gogs repository, a new build and deploy will occur inside of OpenShift. Let’s try this out. Exercise: Using Gogs Web Hooks Click the Files tab in Gogs. This is Gogs’s repository view. Make sure that the drop-down menu at the upper right is set for the master branch. Navigate to the following path: / Then click on the index.php file. Once you have the file on the screen, click the edit button in the top right hand corner as shown here: Change line number 26: 'displayName' => 'National Parks (PHP)', To 'displayName' => 'Amazing National Parks (PHP)', Click on Commit changes at the bottom of the screen. Feel free to enter a commit message. Once you have committed your changes, a Build should almost instantaneously be triggered in OpenShift. From the Topology view, click nationalparks and look at the Builds section of the Resources tab, or, run the following command to verify: oc get builds You should see that a new build is running: NAME TYPE FROM STATUS STARTED DURATION nationalparks-1 Source Git@b052ae6 Complete 18 hours ago 36s nationalparks-2 Source Git@3b26e1a Running 43 seconds ago Once the build and deploy has finished, verify your new image was automatically deployed by viewing the application in your browser: National Parks Info Page You should now see the new name you have set in the JSON string returned. To see this in the map’s legend itself, you will need to scale down your parksmap to 0, then back up to 1 to force the app to refresh its cache. Exercise: Rollback OpenShift allows you to move between different versions of an application without the need to rebuild each time. Every version (past builds) of the application exists as an image in the OpenShift registry. Using the oc rollback and oc deploy commands you can move back- or forward between various versions of applications. In order to perform a rollback, you need to know the name of the Deployment Config which has deployed the application: oc get dc The output will be similar to the following: NAME REVISION DESIRED CURRENT TRIGGERED BY mongodb 1 1 1 config,image(mongodb:3.6) parksmap 2 1 1 config,image(parksmap:%PARKSMAP_VERSION%) nationalparks 9 1 1 config,image(nationalparks:master) Now run the following command to rollback the latest code change: oc rollback nationalparks You will see output like the following: #5 rolled back to nationalparks-3 Warning: the following images triggers were disabled: nationalparks:live You can re-enable them with: oc set triggers dc/nationalparks --auto Once the deploy is complete, verify that the page header is reverted to the original header by viewing the application in your browser. National Parks Info Page Automatic deployment of new images is disabled as part of the rollback to prevent unwanted deployments soon after the rollback is complete. To re-enable the automatic deployments run this: oc set triggers dc/nationalparks --auto Exercise: Rollforward Just like you performed a rollback, you can also perform a roll-forward using the same command. You’ll notice above that when you requested a rollback, it caused a new deployment (#3). In essence, we always move forwards in OpenShift, even if we are going "back". So, if we want to return to the "new code" version, that is deployment #4. oc rollback nationalparks-4 And you will see the following: #6 rolled back to nationalparks-4 Warning: the following images triggers were disabled: nationalparks You can re-enable them with: oc set triggers dc/nationalparks --auto Cool! Once the rollback is complete, verify you again see "Amazing National Parks".
